Compact Hybrid Charging

Rapid Charger 80

Q: How is Rapid Charger 80 transported to site?

The skid-mounted cabinet is transported by flatbed and positioned on-site using a crane or forklift.

Q: Can it be used as a permanent installation?

Yes — many customers deploy it permanently at a fixed depot while retaining the option to relocate later.

Q: Does it support public charging payments?

Yes, RFID, mobile app, and open-loop card payments are all supported out of the box.

Q: What is the warranty period?

Standard warranty is two years, extendable through an ME Energy service contract.

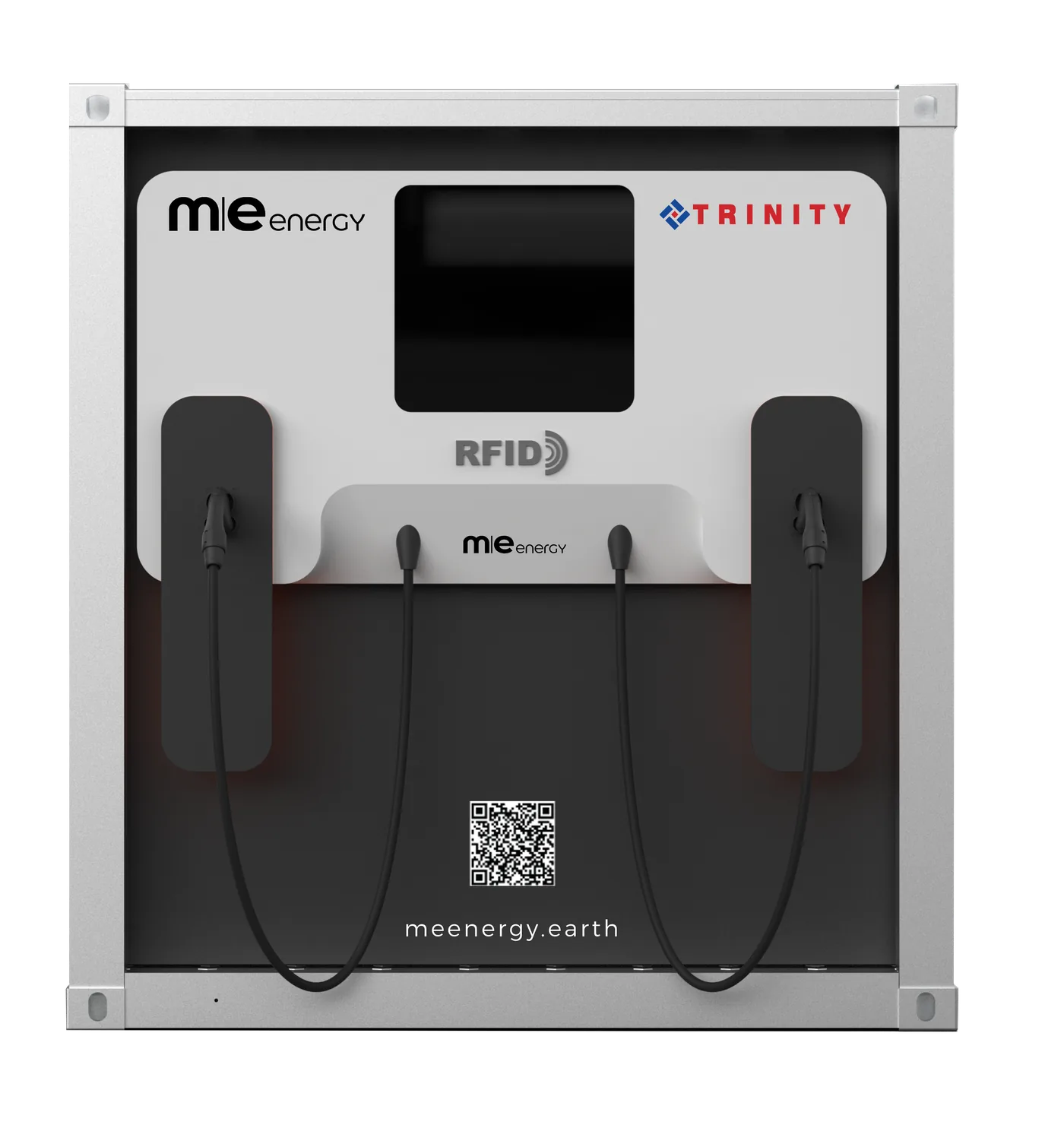

An 80kW compact, skid-mounted charging unit built for last-mile fleets, pop-up events, and rapid deployment wherever charging is needed today.

80 kW

Peak Output

CCS2 Ports

< 1 Hr

Deploy Time

View Specifications

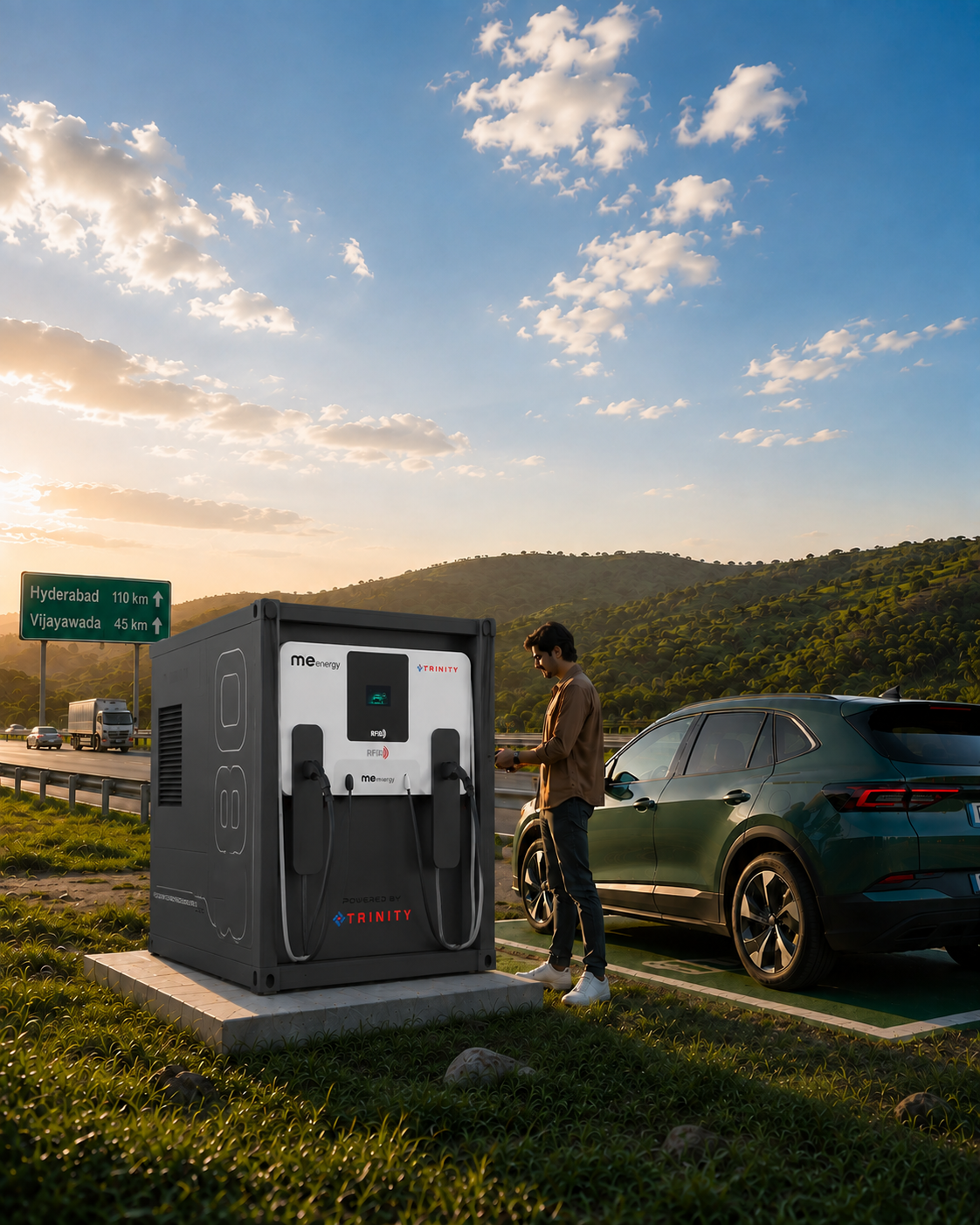

ME Energy Rapid Charger 80 container unit, side view

Overview

Compact power, ready before the crowd arrives.

Rapid Charger 80 is built into a compact, skid-mounted cabinet that cranes or forklifts onto site in minutes, delivering hybrid-sourced 80kW charging for light commercial fleets and events.

It's the fastest way to bring rapid charging to a last-mile depot, a temporary site, or a location awaiting permanent grid infrastructure.

Key Benefits

Why operators choose Rapid Charger 80.

Compact Mobile

Craned or forklifted into place and operational on-site in under an hour.

80kW Hybrid Output

Fast enough for light commercial fleets and last-mile delivery vehicles.

Low Total Cost

Compact hardware footprint keeps upfront and running costs lean.

Fleet-Ready Telemetry

Same remote monitoring platform used across the ME Energy range.

Applications

Where Rapid Charger 80 gets deployed.

Last-Mile Fleets

Pop-Up Events

Remote Sites

Construction

Feature Highlights

Small footprint. Serious engineering.

Skid-Mounted Cabinet

Compact rugged enclosure that cranes or forklifts onto site, no special transport required.

Live Connectivity

4G-linked telemetry for dispatch and status tracking on the move.

Flexible Access

RFID, app, and open-payment access for public or private use.

Technical Specifications

Rapid Charger 80 at a glance.

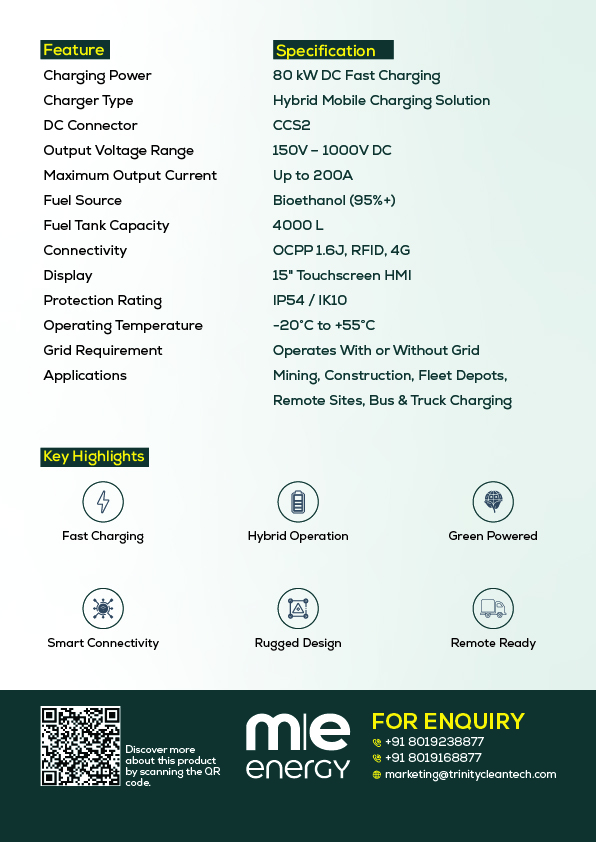

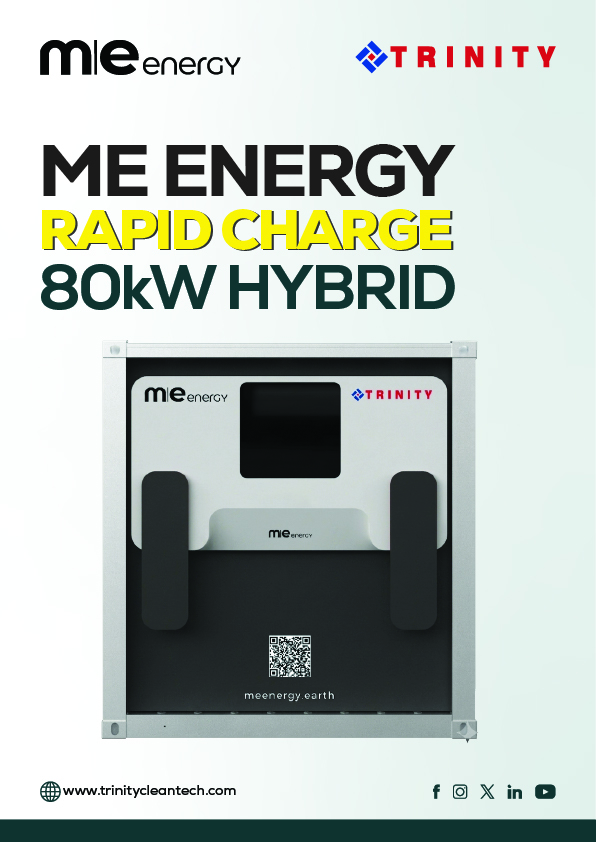

Full illustrated datasheet available for download.

Download datasheet (front) Download datasheet (specs)

Charging Power	80 kW DC Fast Charging
Charger Type	Hybrid Mobile Charging Solution
DC Connector	CCS2
Output Voltage Range	150V – 1000V DC
Maximum Output Current	Up to 200A
Fuel Source	Bioethanol (95%+)
Fuel Tank Capacity	990 L
Connectivity	OCPP 1.6J, RFID, 4G
Display	15" Touchscreen HMI
Protection Rating	IP54 / IK10
Operating Temperature	-20°C to +55°C
Grid Requirement	Operates With or Without Grid

Compare

Rapid Charger 80 vs. portable AC chargers.

Compare	Rapid Charger 80	Portable AC Charger
Charge Speed	DC Fast (80kW)	Slow (7-22kW)
Grid Dependency	Optional	Mandatory
Mobility	Crane / Forklift Deploy	Fixed / Semi-Mobile
Monitoring	Remote 24/7	Manual

Gallery

Rapid Charger 80 in the field.

FAQ

Common questions.
